Powder metallurgy bearing lubricants

汽车配件润滑脂 汽车配件润滑脂

粉末冶金润滑

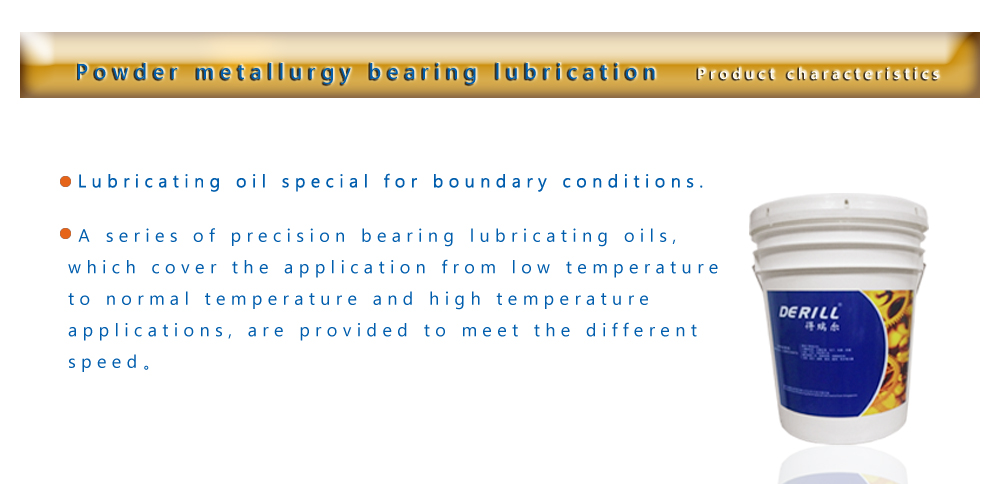

1. Precision bearing grease: ML18-DG3

ML18-DG3 precision bearing grease is a high performance powder metallurgy bearing immersion oil and supplement semi fluid grease,which refined with Synthetic hydrocarbon oil as base oil,special soap to make thickening,and added with anti - oxygen, anti - wear, corrosion, rust and other additives.

Main characteristics

1. Very low evaporation loss: the product is composed of reasonable composition, light weight, low evaporation loss, can guarantee the product of long life lubrication.

2. Excellent high temperature performance:synthesis of oil components to ensure a good high temperature resistance, oxidation resistance, can work stably for a long time at high temperature, reducing sludge and carbon deposit, failure free operation time of bearing.

3. Good low temperature performance:low pour point and no stone wax composition, the product can still guarantee normal lubrication at low temperature, to avoid the bad phenomenon of condensation, frozen.

4. High viscosity index:higher viscosity index, to ensure that the product can be used in a wide range of temperature, you can respond to the outside world speed change conditions.

5. Low coefficient of friction:reduce the internal friction, improve the efficiency of sliding lubrication, reduce the loss of energy consumption and the generation of heat.

6. High load bearing capacity:protect bearing and extend its service life, reduce the possibility of accidental shutdown, so as to achieve the purpose of saving resources.

7. Good material compatibility and rust proof, corrosion resistance:to be able to be in good compatibility with the material around the product, to avoid deformation, crack, rust and other compatibility issues.

精密轴承脂

Performance characteristics:


Excellent oxidation stability and thermal stability;

Long service life,ensure products permanent lubrication;

Excellent low and high temperature stability,can meet the requirements of wide use temperature;

Good anti-wear performance, effectively ensure the normal lubrication of equipment;

Biodegradable, environmentally friendly lubricants.

Typical applications:



  • Immersion and supplementary lubrication for powder metallurgy bearings.



Main performance index:



         Index

ML18-DG3                  Test mehthod
Appearance Yellow semi fluid Visual
Kinematic viscosity of base oil(40℃),mm2/s 55 GB/T 265
Kinematic viscosity of base oil(100℃),mm2/s 9 GB/T 265
Degree of evaporation(100℃,22h),% 0.7 GB/T 7325
Copper corrosion test(100℃,24h) Qualified GB/T 7326
Density ((20℃),g/cm3 0.87 GB/T 1884
Recommended use temperature range,℃ -40~260 -

Filling method:

 Cleaning and lubricating parts, can use vacuum filling or other similar filling method when soaking, can use automatic point oil filling method. Before using the need to stir evenly, can not through the small filter.



Storage note:



Please place in a cool, no direct sunlight, no heat source condition, seal containers to prevent pollution after use.



Operational considerations:



This product will stimulate the skin and eyes, the operation should pay attention to take appropriate protective measures. Use the environment should pay attention to ventilation. Please refer to the material safety data sheet (MSDS) for other safety issues.




2. Precision bearing lubricating oil: ML19-D220



Testing by authoritative organization,it is in line with the requirements of the EU RoHS harmless act。

 Source in aviation and aerospace industrys high-tech products;

The application of advanced friction lubrication theory and chemical technology development and production;

Pay attention to environmental protection,use of biodegradable materials.




精密轴承油

Typical application areas:



  • Have all kinds of powder metallurgy bearings, bearing lubrication, noise reduction

    Have a variety of electrical appliances, instruments of micro motors, precision bearing gear lubrication, noise reduction

  •



Main performance index:



Index ML19-D220 Test method
Appearance

Light yellow transparent liquid

Visaul

ISO viscosity grade

220 GB/T 3141

viscosity index

154 GB/T 1995
Pour point,≤℃ -42 GB/T 3535
open flash point,≥℃ 260 GB/T 3536

Evaporation (100 DEG C, 22h,%),

0.8

Copper corrosion test (at 100 24h)

qualified



Performance characteristics:



Have excellent temperature stability, recommended temperature: -40 to 180 ;

Good lubricity, good anti-wear properties;

Good antioxidant and anti-aging properties, good anti rust performance.

Packaging specifications:



18L, 200L



3. Perfluoric  bearing lubricants: ML335-A150



ML335-A150 perfluoric bearing oil is high performance lubricants,which is refined with fluorine oil as base oil, adding anti-wear, anti-corrosion, anti oxygen anti rust additives.It can be used in powder metallurgy bearing immersion and supplementary lubrication.



Main characteristics:



1. excellent high temperature performance: fully synthetic composition guaranteesgood resistance to high temperature and oxidation resistance, long-term stability athigh temperatures, reduction of sludge and carbon generation, fault-free operationof the bearing.



2. very low evaporation loss of performance: lubricant composition is reasonable, less lightweight components, with very low evaporation loss, can guarantee the product's long life lubrication.



3. excellent low temperature performance: low pour point, paraffin-free quality of composition, guarantee the product will still function properly lubricated at low temperatures, avoid the bad phenomenon of condensation, freezing.



4. low friction coefficient: reduce internal friction, improve the efficiency of the lubrication of sliding and reduce energy loss and heat generation of moving parts.



5. good material compatibility and rust proof, corrosion resistance: materials neara good compatibility with the product to avoid deformation, cracks, rust and other compatibility issues.

全氟轴承油

Performance characteristics:



Excellent oxidation stability and thermal stability;

Long service life, to ensure that the product's lifetime lubrication;

Excellent low temperature performance and high temperature stability, can meet the requirements of wide temperature;

Good wear resistance, effectively ensure the normal lubrication of equipment;

Biodegradable, environmentally friendly lubricants.

Typical applications:



Lubrication and noise reduction of all kinds of powder metallurgy bearing and oil bearing;

Lubrication and noise reduction of the micro motor of a variety of electrical appliances and instruments, precision bearing gear.

Main performance index:

Index ML335-A150 Test method
Colour colourless transparen Visual
ISO viscosity grade 150 GB/T 3141
Kinematic viscosity(40℃),mm2/s 134.6 GB/T 265
Kinematic viscosity(100℃),mm2/s 15.76 GB/T 265
Viscosity index 123 GB/T 1995
pour point,℃ -37 GB/T 3535
Evaporation(200,22hr),% 1.94 GB/T 7325
Copper corrosion test qualified GB/T 5096
Recommended temperature range,℃        -30~288 -

Filling method::

Cleaning lubricating parts, can use vacuum filling or other similar filling method when soaking, can use automatic point oil filling method when supplementary lubrication.

Storage note:

Please place in a cool, no direct sunlight, non heat source;After use, should smooth the surface of the grease and seal the container to prevent pollution.

Operational considerations:

This product may stimulate the skin and eyes;Should pay attention to take appropriate protective measures. The environment should pay attention to ventilation. Please refer to the material safety data sheet (MSDS) for other safety issues.



4. Precision bearing oil ML-C68

ML-C68 precision bearing oil is high performance powder metallurgy bearing soaking and supplementary lubricating oil.It's refined from hydrocarbon oil as the base oil, adding anti - oxygen, anti - wear, corrosion resistant, rust proof and other additives.

Main characteristics:

1 lower evaporation loss performance: the product composition is reasonable, light weight composition is little, have lower evaporation loss, prevent evaporation loss is too large, can guarantee the product of long life lubrication.

2 low friction coefficient: reduce internal friction, improve the efficiency of sliding lubrication, reduce the loss of energy consumption and the generation of heat.

3 good extreme pressure ability: reduce the impact of the impact of the shaft to the damage, protect the normal operation of the bearing, extend the life of the bearing.

4 better noise reduction performance: oil film formation is faster, can reduce the formation of noise in operation.

5 excellent bearing capacity: can protect the bearing and extend its service life, reduce the possibility of accidental shutdown, so as to achieve the purpose of saving resources.

6 good material compatibility: be able to have good compatibility with the material around the product, avoid deformation, cracking, swelling and other compatibility issues.

7 good protection performance: can play a rust proof, moisture-proof effect, reduce the possibility of bearing in use for a long time in the water because the reasons for the formation of rust.

全氟脂

Performance characteristics:

² Excellent pressure resistance;

² Long service life, to ensure that the product's lifetime lubrication;

² Lower evaporation loss and prolong the service life of lubricating oil;
